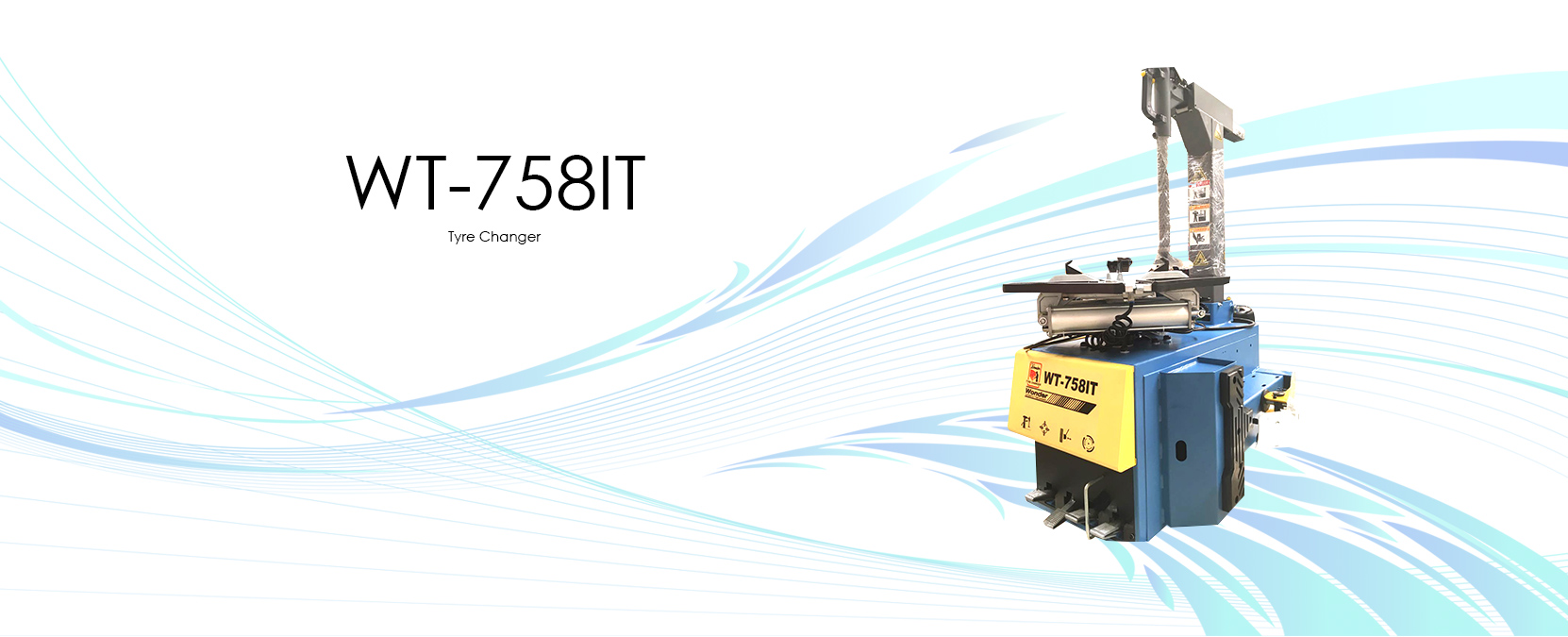

WONDER PRODUCTS | TYRE CHANGER | TYRE CHANGER WT-758IT


  Features
  ........................................................................................................................................................................................................................

  1. 1.The use of the bead breaker cylinder make the bead breaking force much bigger.
    2.The hexangular shaft adopts the structure of pneumatic spring making the operation easy.
    3.The diameter of turntable cylinder is 80mm to increase the clamp force of the jaw on the rim.
    4.Semi automatic tire changer, the tilt backward and forward of the column and the lock of the column can be completed pneumatically.
    5.The quick deflate valves are installed in front of/at the rear of the bead breaker cylinder, the one-side movement can be completed in about 2-3seconds.
    6.The inflation device has two options including plastic inflation box and metal tool box. Due to the mount of the new style pressure limit valve making the time of the inflation to be decreased by half.
    7.The design of the pedal assembly is removable. It is easy to maintenance and exchange.
    8. Column adopts the double bend process making it very strong.
    9.The horizontal arm adopts 50mm quadric shaft securing the bend resistence strength of the horizontal arm.
    10.The turntable with the protective cover which can effectively seperate the rim from the surface of the metal surface of the turntable. And make it look more beautiful.
    11.The design of the bead breaker blade can rotate at any direction , securing the best bead breaking force . The bead breaker blade is equipped with the protective cover.
    12.The bead breaker arm has the 2 travel.
    13.Turntable is equipped with the standard parts of wear-resistence washer and scale.




Specifications
Max Wheel Diameter
 1030mm
Machine Weight
 260kg
Rim Width
 3" - 15"
Power
 0.8-1.1KW
Inside Clamp
 13" - 26"
Outside Clamp
 10"-24"
Rotation Speed
 7-13rpm










  Inflator Tank
