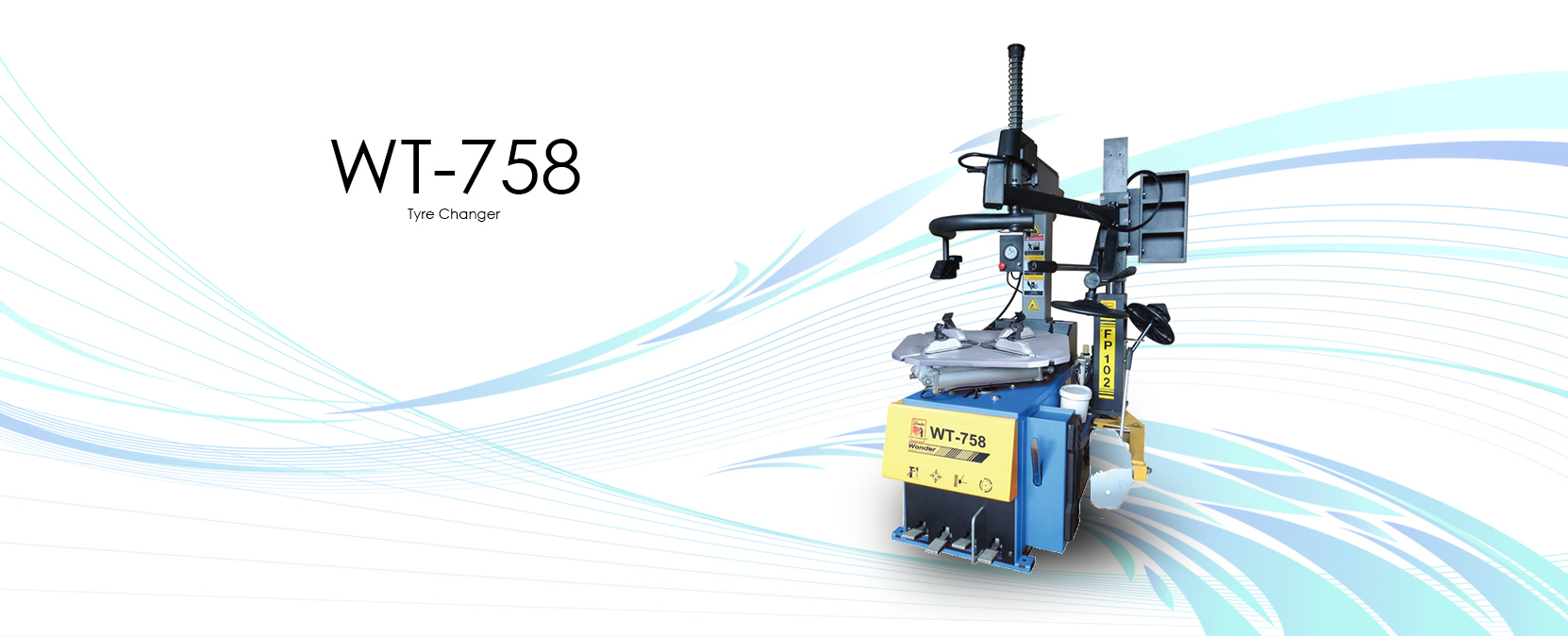

WONDER PRODUCTS | TYRE CHANGER | TYRE CHANGER WT-758


  Features
  ........................................................................................................................................................................................................................

  1. 1. Semi-automatic tire charger tilt backward and forward of the column and the lock of the column can be completed pneumatically.
    2. Turntable protective covers as standard protect the rim to avoid scratch.
    3. Ruler on the covers can help to clamp the rim conveniently.
    4. The standard correspond of wearable washers as Europe standard to protect personal safety when mounting the tire.
    5. The control pedal assembly has the step-move function which can stp the clamp at any position conveniently .
    6. Hexangular shaft with 41mm diameter is suitable for operation the flat and hard tire.
    7. Bead breaker cylinder power 2500KG to bead break the tire from rim easily .
    8. Protective cover for clamps and mounting head as standard configuration to avoid damage the rim.
    9. The clamp cylinder with 80 diameter as standard increases the power to 106kg




TECHNICAL DATA
Max Tire Diameter
 1120mm
Rim Width
 3" - 12"
Outside Clamp
 11" - 22"
Inside Clamp
 13" - 24"
Rotation Speed
 6.5rpm
Power Supply
 240v/415v
Motor Power
 0.75-1.1kw
Net Weight
 240kg
