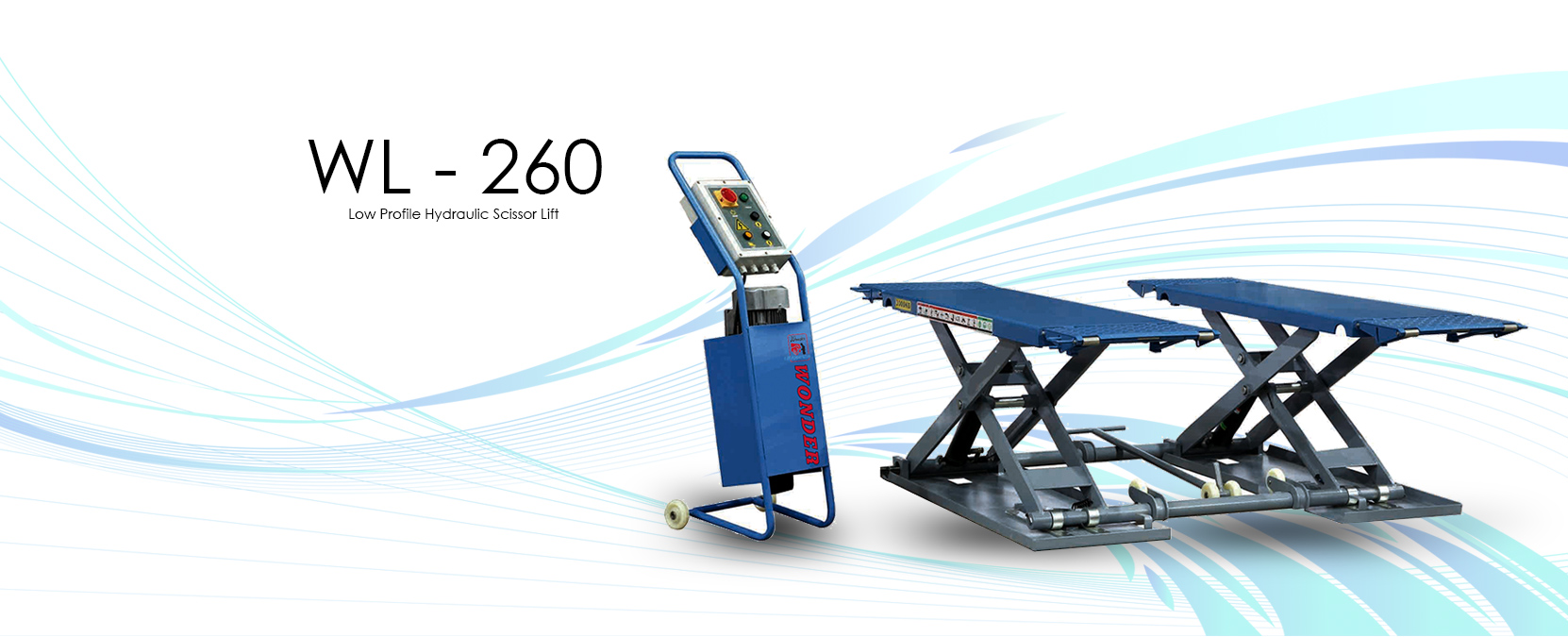

WL-260 LOW PROFILE HYDRAULIC SCISSOR LIFT |
|
|
|
|
| |
| |
Features |
 |
|
| |
........................................................................................................................................................................................................................ |
| |
- 1. Ideal choice for quick tyre replacement and simple service alongside of vehicle.
- 2. Surface mounted or movable used, with optional movable kits.
- 3. Special and practical platform extension design broadens your service scope.
- 4. Pneumatic release system decreases noise emitted during service work.
- 5. Mechanical safety locks to ensure that lift at different heights with high security.
- 6. 24V control voltage.
- 7. Anti-skid platform effectively prevents sudden drop-down of vehicle.
- 8. Optional movable devices, easy to use operator.
- 9. Dynamic testing with 115% of rated capacity and static testing with 150% of rated capacity.
|
| |

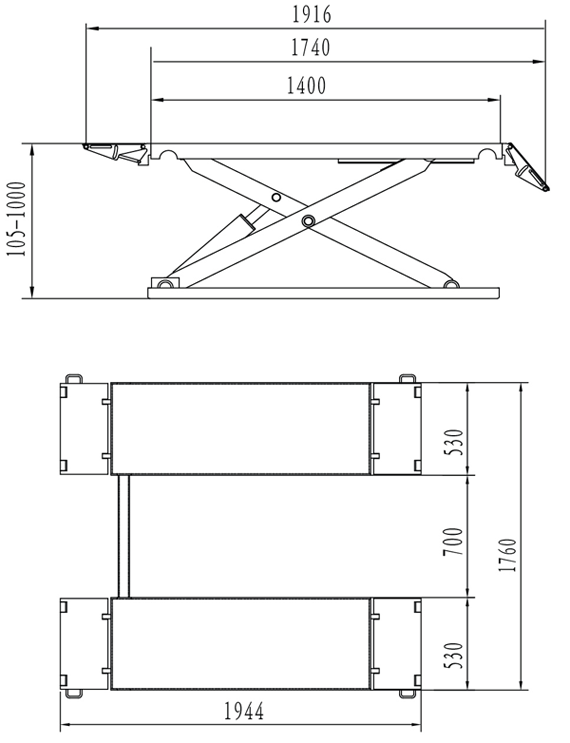

Technical Data |
Lifting Capacity |
3000kg |
Lifting Height |
1000mm |
Minimum Height |
105mm |
Lifting Time |
30 Seconds |
Overall Length |
1400mm |
Overall Width |
1760mm |
Width Between Colums |
700mm |
Motor Power |
2.2kw |
Power Supply |
220V/ 380V/ 415V |
Air Supply |
6-8bar |
Weight |
627kg |
Packing Size |
1800 x 1540 x 200mm + 520 x 430 x 1150 |
* 20" Container for 30 units |
|
|
| |
|
| |
 |
| Pneumatic Lock |
|
 |
| Extended Rate |
|
|
|
|
|
| |
| |
| |
| |
| |
| |
|
|
