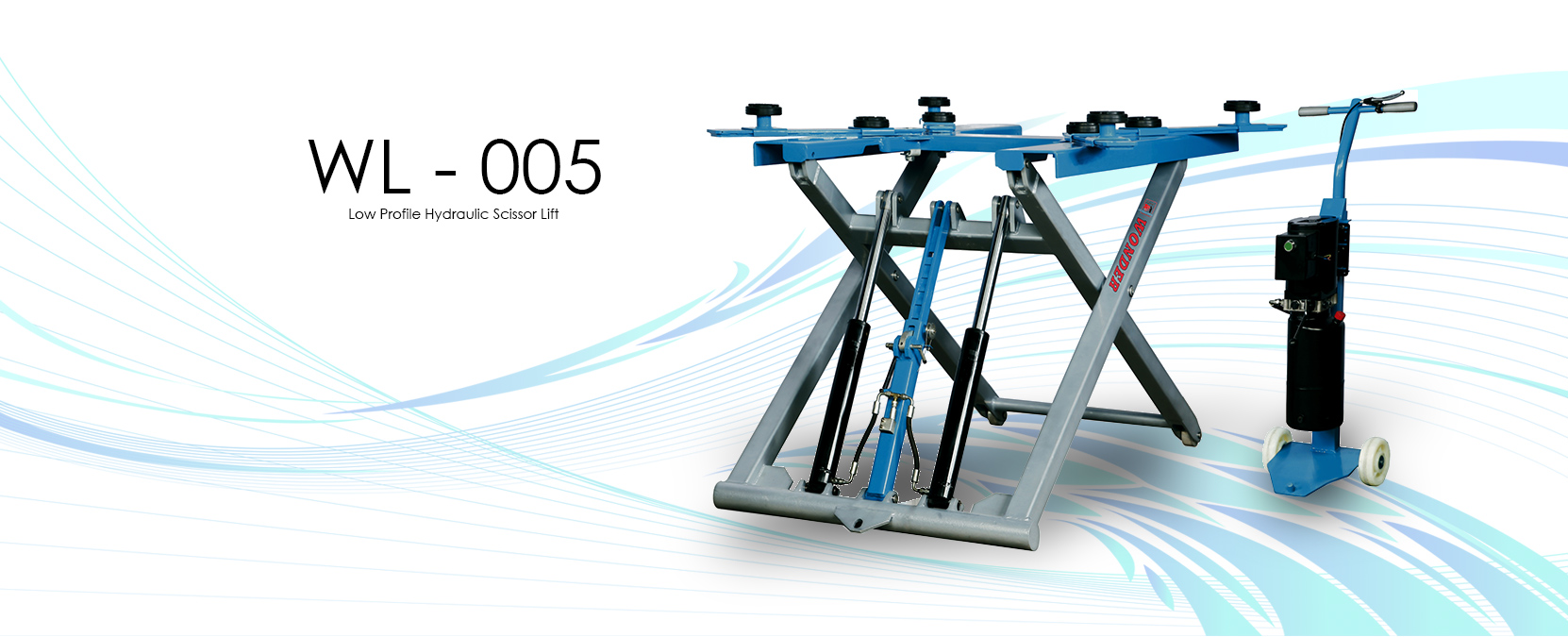

WL-005 LOW PROFILE HYDRAULIC SCISSOR LIFT |
|
|
|
|
| |
| |
Features |
 |
|
| |
........................................................................................................................................................................................................................ |
| |
- 1. Manual single point locks release.
- 2. Portable, easy to move.
- 3. Two hydraulic cylinders.
- 4. Safety locks at any work height.
- 5. SUV adapters (4 PCS) included.
- 6. Separate motor stand included.
- 7. It has adopted 115% dynamic loading capacity and 150% static loading capacity test.
|
| |

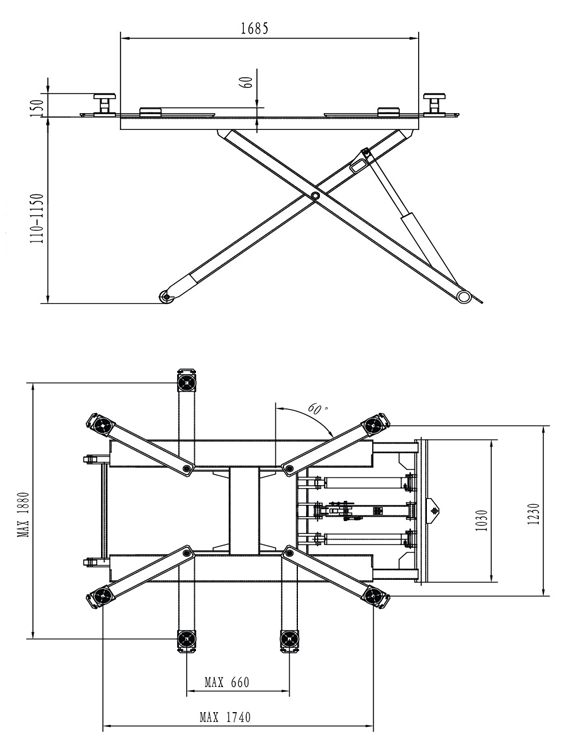

Technical Data |
Lifting Capacity |
2700kg |
Lifting Height |
1200mm |
Minimum Height |
110mm |
Lifting Time |
30 Seconds |
Overall Length |
1685mm |
Overall Width |
1000mm |
Motor Power |
2.2kw |
Power Supply |
110V/ 220V/ 380V |
Air Supply |
6-8bar |
Weight |
451kg |
Packing Size |
2300 x 1050 x 230mm + 900 x 400 x 500m |
* 20" Container for 30 units |
|
|
| |
|
| |
| |
| |
| |
| |
| |
| |
|
|
