Function Summary

1. High Quality Video - HD 720P, 30 fps
2. Low-Light CMOS - F / 2.0 Big Aperture
3. Great Daylight Recording & Enhanced Night Vision
4. Camera Lens - 140° Wide Angle Lens
5. Emergency Record - To protect the emergency file is not overwritten
6. G-Sensor - G-Sensor for protecting important incidents
7. Motion Detect - Automatically record after the motion is detected
8. Cycle Recording - System will automatically cycle recording without interval time
9. LCD Screen - With 2.4" TFT LCD color screen, provide better images
10. Collision Detection -Automatically record and protect the file when have accident
11. Start Engine Record - Automatically start engine record
12. Stop Engine Record - Automatically stop engine record and save
13. Date & Time - Recording date& time can be stamped in the video
14. White Balance Auto Sensing - Auto adjust white balance and exposure control
15. High Temperature Resistance design - The parts and balance tested on high temperature resistance
16. High Temperature Resistance Lithium Polymer Battery can be used as a portable unit for recording
17. Memory Card - Support up to 32GB Micro SDHC
18. Certificate - BSMI/CE/FCC/RoHS
19. Built-In DVR Player - Browse, play and save all stored data directly on PC without any extra installation and date format issue

Product Features
DSP	SQ Chipset
Image Sensor	2M Toshiba CMOS Sensor
Lens	140° (D), all-glass flat ultra wide angle lens
Aperture	F/2.0
Display	2.4" TFT LCD Color Screen
Video Resolution	HD 1280 x 720 (30fps)
Video Format	AVI
Video Compression	MJPEG
Loop Recording	Auto Loop recording with no interval time file saving technology
Power Supply	Cigar Car Changer (input: 12V ~ 24V. Output:DS5V/1A)
LED Indicator	Red & Green Indicator Light
Operating Temperature	- 20°C ~ 70°C
Storage Temperature	- 30°C ~ 80°C
Dimension	6.5 (L) x 6.5 (W) x 2.8 (H) CM
Weight	65g

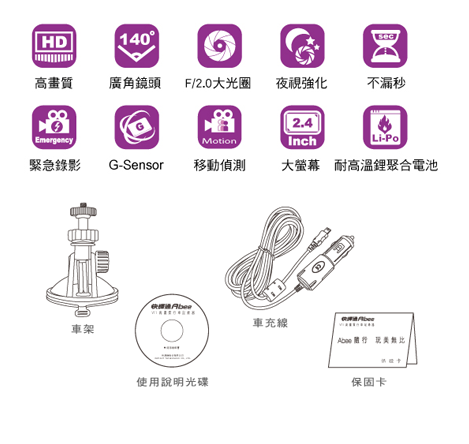

Accessories	Bracket, Mini USB Cigar Car Changer, User Manual, Warranty Card

Stylish, High Quality and Light-Weighted

• Emphasis on User Safety, No interference with other car devices
• All parts pass high temparature resistant testing

Great Daylight recording, Enhanced night version

• ABEE V11 origin from Instant Technology Co. Ltd. by following the road status of Taiwan. ABEE V11 design with F/2.0 Big Aperture with light balance & quality image.
• 140° wide angle lens captures all three lanes on the road & allows images to stay genuine.
• Newly incorporated night vision enhanced mode offers higher protection in a low-light environment
• Images can be clearly recorded by using the smart light sensing sensor. If there is not enough lighting from the environment, it will automatically activated black/white mode.

Intuitive Interface, Easy to operate
Built - In DVR Player	Browse, play and save all stored data directly on PC without any extra installation and data format issues Password function available for the Micro SD Card to ensure data security G-Sensor information shown during video playback  A) Play Video  B) G-Sensor record with emergency technology  C) Status of playing  D) & E) File Management / Video List  F) Fuction

Function - integrated Highest Specifications among HD recorders

Emergency Recording

Protects important files from being overwritten

G-Sensor Collision Detection

3 Axis (X/Y/Z) sensor locks files automatically when collision magnitude reaches the pre-defined sensitivity standard.
3 levels of sensitivity standard are at your choice according to the normal collision characteristics of your car.
This function can be helpful in defining the responsible party of an accident.

Motion Detection

When motion detected, it can starts recording 5 ~ 10 seconds before the motion's occurrence within the lens view.

Stylish, High Quality & Light Weighted

Emphasis on User Safety, No Interface with other car devices

Built-in high temperature resistant lithium polymer battery
All parts pass high temperature resistant testing
BSMI certified for no interference with other car devices
RoHS/CE/FCC certified
