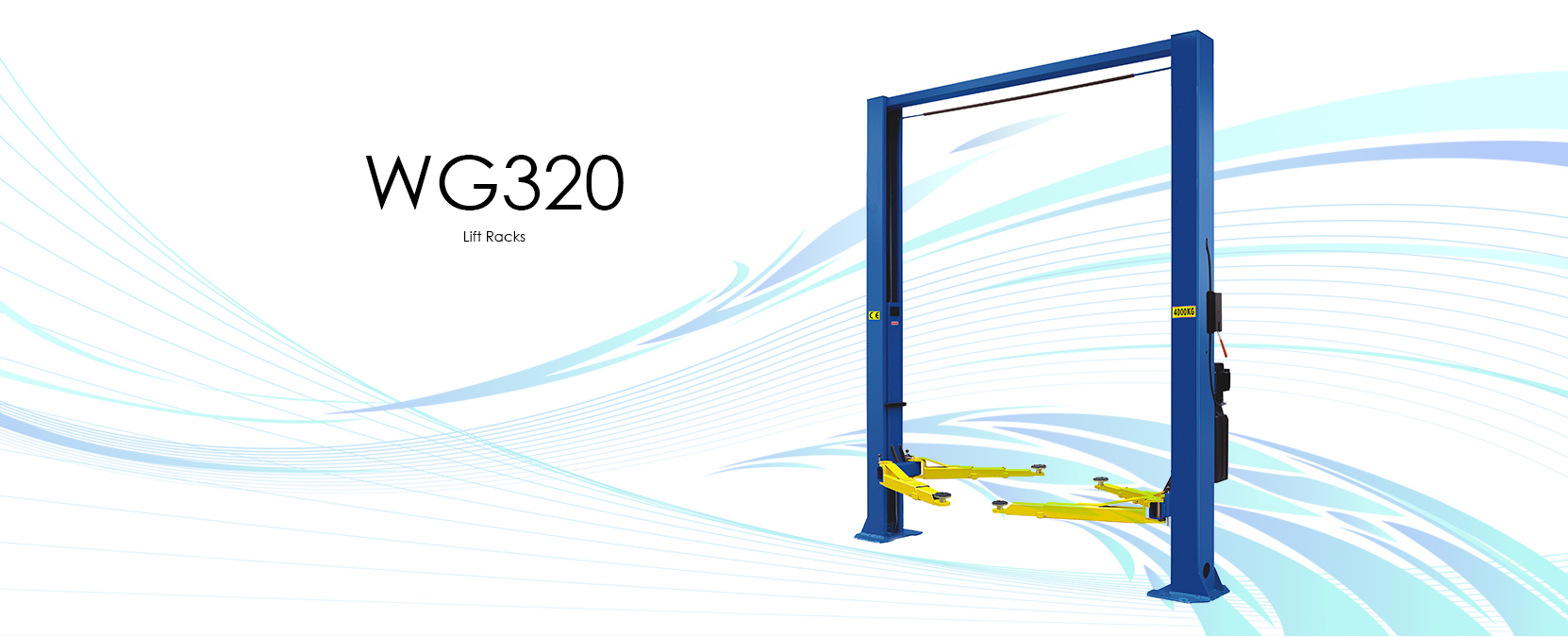

2 POST HYDRAULIC LIFT WG320 |
|
|
|
|
| |
| |
Features |
 |
|
| |
........................................................................................................................................................................................................................ |
| |
- 1. Floor plate design is ideal choice for low ceiling shop.
- 2. By two cylinder, plate and wire rope chain balance system, lifting off and landing smooth.
- 3. Hydraulic power unit configuration throtting device, can always adjust the rate of decline.
- 4. Assymmetric column allows wider drive through clearance.
- 5. Manual lock release from one side, more convenient to use.
- 6. Take three stages arm design, a larger adjustment range, for different vehicle chassis.
- 7. Rubber support pad with spiral adjust the height and in stages adjust the height, optional.
- 8. With 24V limit switch
- 9. Rubber pad door-opening protection.
- 10. With guard rail, toe protection.
- 11. Have adopted 115% dynamic and 150% static loading test.
- 12. CE approved.
|
| |
Technical Data |
Lifting Capacity |
4000kg |
Lifting Height |
1900mm |
Minimum Height |
110mm |
Lifting Time |
45/ 50 Seconds |
Overall Length |
2830mm |
Overall Width |
3420mm |
Width Between Colums |
2820mm |
Motor Power |
2.2kw |
Power Supply |
220V/ 240V/ 380V/ 415V |
Weight |
636kg/ 680kg |
Packing Size |
2900 x 530 x 770mm |
* 20" Container for 30 units |
|
|
| |
|
| |
 |
| Strong lifting system |
|
 |
| Retractable tray with firm design |
|
 |
| One side unlock |
|
|
|
|
| |
| |
| |
| |
| |
| |
|
|
