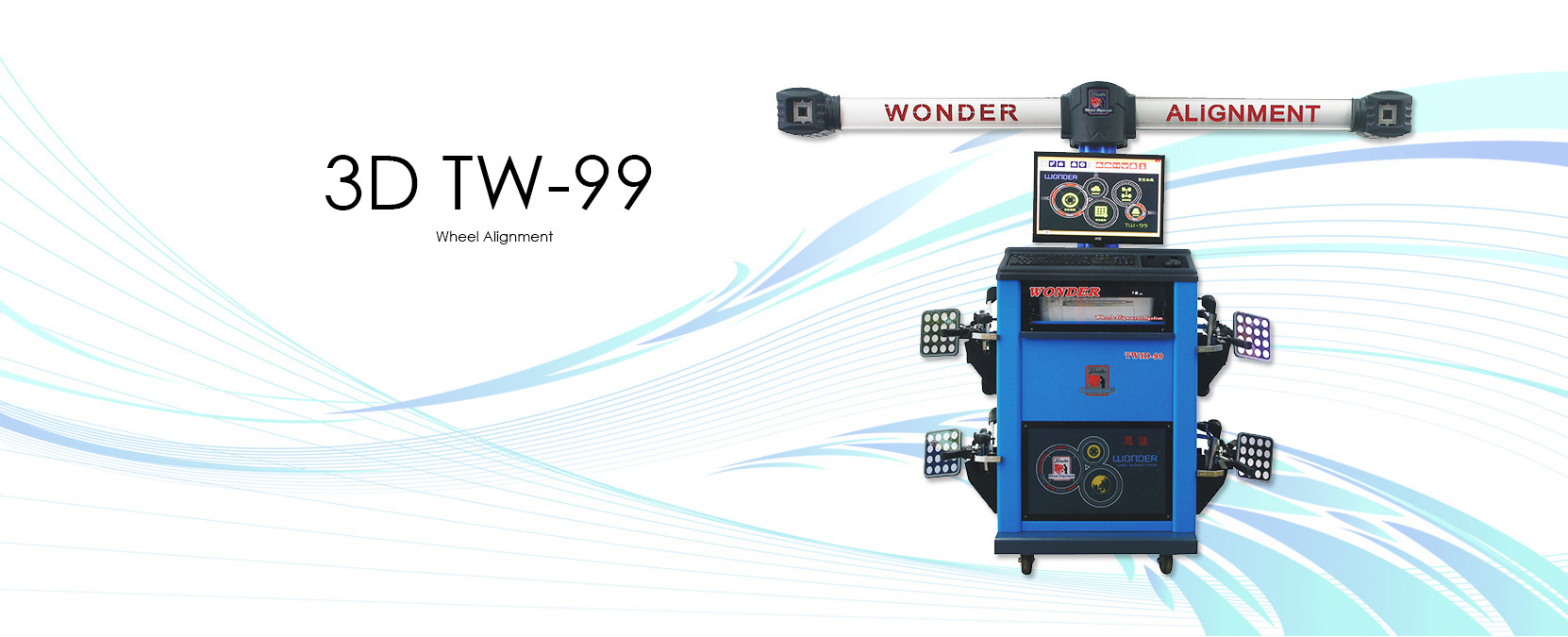

WONDER PRODUCTS | Alignment System | WONDER TW-99


  Features
  ........................................................................................................................................................................................................................
  1. With high precision, high dynamic range cameras, and the latest 4X4 target boards are faster to capture image and signal.
2. All new 3 point clamps with rim scratch proof.
3. Durable 4X4 target boards with rubber protection.
4. Easier to be operated by professional technician with high working efficiency.
5. Caster, camber, and toe dynamic adjustments are applied to the system.
6. Neither battery nor power supply were needed by the target board. Calibration of target board is also not needed.
7. The system was calibrated before shipping. Only set up the system at client site and then the system can operate properly. Routine calibration is not required since the target boards are made of robust material.
8. 2 years warranty from factory in Malaysia. T&C apply.




Technical Specifications
Power supply
 220V/50~60HZ/1PH
Display resolution
 0.01˚/1'
Measure accuracy
 0.02˚/1'
Total Toe
 ±20˚
Individual Toe
 ±10˚
Total turn angle
 ±58˚
Camber
 ±10˚
Caster ±20˚
KPI ±20˚
Included angle 0~30˚




Default Setup
Mobile cabinet
 1
Wheel 3 points clamps
 4
Steer wheel fixer
 1
Clamp stand
 4
Brake pad fixer
 1
User’s manual
 1
Printer
 1
Key board 1
LED display 22” 1
Laser mouse 1
4X4 Target board front 2
4X4 Target board rear 2
Camera module T bar 1











  The latest 4X4 durable target boards
with higheraccuracy		   ALL NEW 3 point clamps with rim
scratch proof		   Friendly operation interface   All new interface
