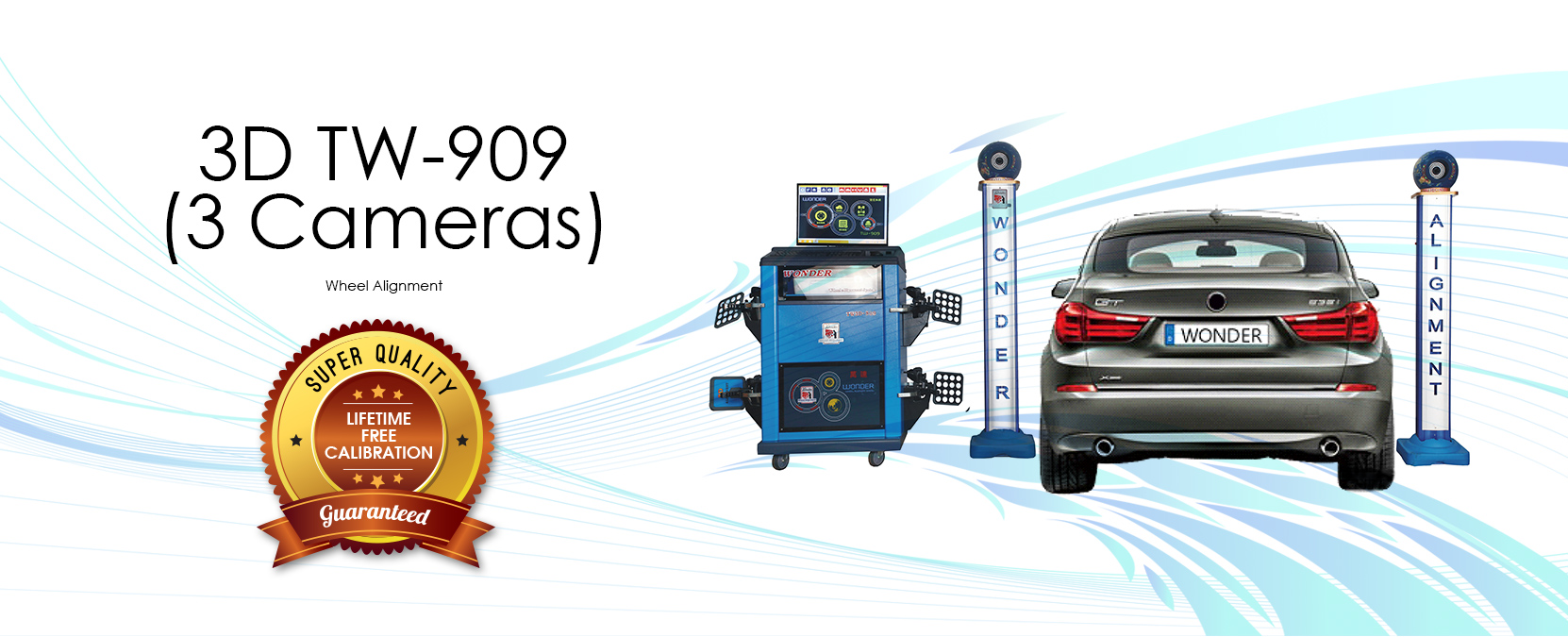

WONDER PRODUCTS | Alignment System | WONDER TW-909


  Features
  ........................................................................................................................................................................................................................
  1. Aisle type installation in order to a vehicle go through between two camera poles. Very flexible and convenient for two entries(front and rear) tyre shop.
2. Third camera automatic calibration between two camera poles is to maximize accuracy, and installation convenience.
3. Durable 4X4 target boards with rubber protection.
4. All new 3 point clamps are lighter with rim scratch proof.
5. Caster, camber, and toe dynamic adjustments now are applied to the system.
6. The most flexible camera installation on wall, floor, and ceiling. Just suit to your shop.
7. Wider camera range to capture more accurate data.
8. After-sales-service becomes more simple you will never see. The fastest camera or reflection board replacement with exactly same accuracy. Owner will save 80% time to wait for our service, and save 60% money to pay for maintenance.
9. 3 years warranty from factory in Malaysia. T&C apply.




Technical Specifications
Power supply
 220V/50~60HZ/1PH
Display resolution
 0.01˚/1'
Measure accuracy
 0.02˚/1'
Total Toe
 ±20˚
Individual Toe
 ±10˚
Total turn angle
 ±58˚
Camber
 ±10˚
Caster ±20˚
KPI ±20˚
Included angle 0~30˚




Default Setup
Mobile cabinet
 1
Wheel 3 points clamps
 4
Steer wheel fixer
 1
Clamp stand
 4
Brake pad fixer
 1
User’s manual
 1
Printer
 1
Key board 1
LED display 22” 1
Laser mouse 1
4X4 Target board front 2
4X4 Target board rear 2
Camera module bar 2











  ALL NEW 3 point clamps with rim
scratch proof		   The latest 4X4 durable target boards

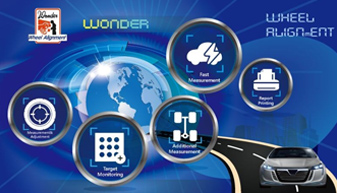

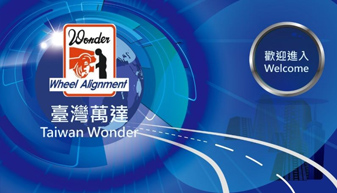

with higher accuracy 		  Friendly operation interface   All new interface
